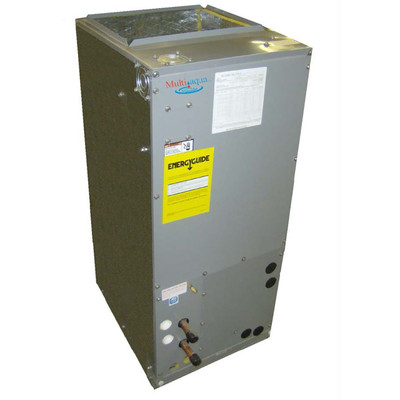

Multiaqua 60CWA4-HW Multi Position Hydronic Air Handler, 5 Ton, 4-Pipe, Chilled/Hot Water, 120V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-60CWA4-HW
Weight:
199.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua 60CWA4-HW Multi Position Hydronic Air Handler Features:
- 60,000 BTUH nominal capacity.
- 4-pipe chilled water and hot water system.
- Multi-position vertical or horizontal installation.
- Nominal airflow: 1,872 CFM.
- 3/4 HP three-speed direct drive PSC fan motor.
- Internal hot water circulating pump included.
- Heavy-gauge galvanized steel insulated cabinet.
- 3/8" copper tube coils with aluminum fins.

Additional Information:
The Multiaqua 60CWA4-HW delivers robust 5-ton performance for larger hydronic comfort systems. Designed with separate chilled water and hot water coils, the unit supports efficient year-round operation while maintaining installation flexibility through its multi-position configuration. Features include an insulated galvanized steel cabinet, internal hot water pump, manual air bleed port, primary and secondary drains, and a factory-installed filter for simplified maintenance.
