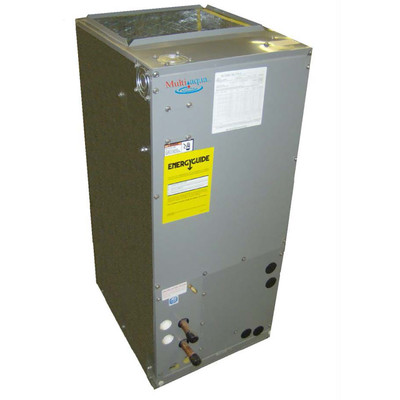

Multiaqua 48CWA4-HW Multi Position Hydronic Air Handler, 4 Ton, 4-Pipe, Chilled/Hot Water, 120V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-48CWA4-HW
Weight:
186.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua 48CWA4-HW Multi Position Hydronic Air Handler Features:
- 48,000 BTUH nominal capacity.
- 4-pipe chilled water and hot water configuration.
- Multi-position vertical or horizontal installation.
- Nominal airflow: 1,786 CFM.
- 3/4 HP three-speed direct drive PSC fan motor.
- Internal hot water circulating pump included.
- Heavy-gauge galvanized steel insulated cabinet.
- 3/8" copper tube coils with aluminum fins.

Additional Information:
The Multiaqua 48CWA4-HW is engineered for commercial and residential hydronic applications requiring independent heating and cooling coils. The 4-pipe design enables precise comfort control, while the insulated cabinet, dynamically balanced blower assembly, and multi-position installation flexibility simplify integration into a variety of HVAC systems. An internal hot water pump and factory wiring help streamline installation.
