Modine DFP200TFRNN14A1 Indoor Duct Furnace, 115V, Natural Gas, Power Vent, Stainless Exchanger, Burner And Pan, 200000 BTUH, Right Hand Access, 1 Stage Control
Modine
(No reviews yet)
Write a Review
Write a Review
Modine
Modine DFP200TFRNN14A1 Indoor Duct Furnace, 115V, Natural Gas, Power Vent, Stainless Exchanger, Burner And Pan, 200000 BTUH, Right Hand Access, 1 Stage Control
$3,908.14
6 In Stock, Usually Ships In 3-5 Business Days
Free ground shipping to the lower 48 states
- Product ID:
- Modine-DFP200TFRNN14A1
- Weight:
- 187.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Virginia - Direct From Modine
Description:
Modine DFP200TFRNN14A1 Indoor Duct Furnace Features:
- Jobsite elevations above 2000 Ft. require a high altitude adjustment kit. See Related Accessories section to order.

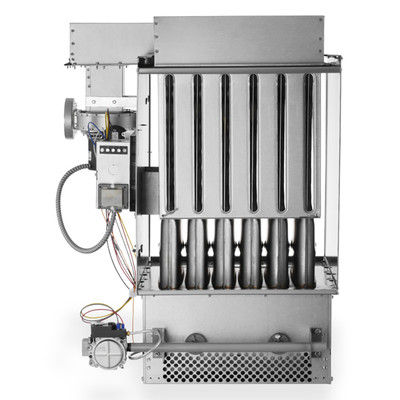

- Product images above are catalog images not actual product photos.
- Product images above are catalog images not actual product photos.
- Power vented.
- Natural gas.
- Right hand control access with slide out burner access.
- 1 stage gas control.
- Stainless steel heat exchanger.
- Natural gas.
- Right hand control access with slide out burner access.
- 1 stage gas control.
- Stainless steel heat exchanger.
- Stainless steel drip pan.
- Stainless steel burner.
- 115 Volt / 60 Hz. / 1 Ph.
- ETL certification for commercial and industrial use in the US and Canada.
- Aluminized steel cabinet with duct flanges for easy ductwork connection.
- 81 percent minimum thermal efficiency over 20° to 100°F temperature rise range for fuel savings.
- Heat exchanger certified to withstand 3.0 Inch W.C. external static for use in systems with long duct runs or high static accessories.
- Blocked vent safety switch to verify proper venting.
- Automatic reset high limit safety control.
- Intermittent pilot ignition with continuous retry control system.
- Control terminal board and low voltage terminal connections.
- Gas control step down transformer with 24V gas controls
- 4 suspension point accept field provided threaded rod.
- 115 Volt / 60 Hz. / 1 Ph.
- ETL certification for commercial and industrial use in the US and Canada.
- Aluminized steel cabinet with duct flanges for easy ductwork connection.
- 81 percent minimum thermal efficiency over 20° to 100°F temperature rise range for fuel savings.
- Heat exchanger certified to withstand 3.0 Inch W.C. external static for use in systems with long duct runs or high static accessories.
- Blocked vent safety switch to verify proper venting.
- Automatic reset high limit safety control.
- Intermittent pilot ignition with continuous retry control system.
- Control terminal board and low voltage terminal connections.
- Gas control step down transformer with 24V gas controls
- 4 suspension point accept field provided threaded rod.
The indoor Power-vented duct furnace line was designed for use with a building’s heating, heating/cooling, and make-up air systems. Available in 11 model sizes, the units cover a wide variety of applications. They have input ranges from 75,000 to 400,000 Btu/Hr and can operate on either natural or propane gas with an airflow range from 556 to 14,500 CFM. The unit relies on a natural draft to vent properly. Power vented units should be considered if the vent system is horizontal or if the space in which the unit is located is generally under negative pressure.
