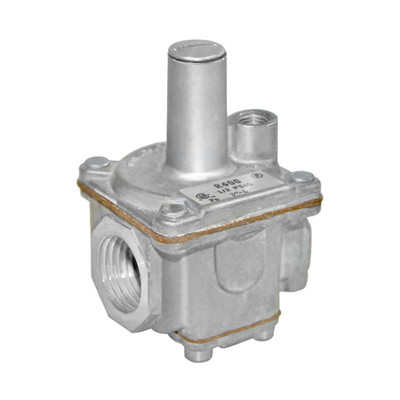

Maxitrol R500S-1/2 1/2" Spring Gas Pressure Regulator-800,000 BTU Includes 3-6" Spring Use With R52
Maxitrol
18 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)
Free ground shipping to the lower 48 states
- Product ID:
- R500S-1/2
- UPC:
- 068541200303
- Weight:
- 10.00 (Lbs.)
- Ships From:
- Massachusetts
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
Description:
Maxitrol R500S-1/2 Spring Gas Pressure Regulator Features:
- Gas Pressure Regulator.
- Type Double Diaphragm Balanced Valve.
- Nominal Size 1/2 Inch.
- End Connection Female Threaded x Female Threaded.
- End to End Distance 3 Inch.
- Body Material Aluminum.
- Temperature Rating -40 to 250 Deg F.
- Pressure Rating 5 PSI (Inlet), 12.5 PSI (Emergency Exposure Limit).
- Application Burner and Pilot Load, Infrared Heater and Pilot Line.
- Applicable Standard UL, CSA (Canada and US), CE, ANSI Z21.18.
- Gas Type Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture.
- Vent Pipe Connection 1/8 Inch Threaded.
- Swing Radius 3.6 Inch.
- Size 3.1 Inch Width x 4.7 Inch Height.
- Pressure Drop Rating 730 BTU/Hour.
- UPC: 68541200303.
- Part Number: R500S-1/2.
Additional Features
- Double Diaphragm Balanced Valve Design Makes it Possible to Maintain Steady Outlet Pressure Control with Widely Varying Inlet Pressure.
- The Regulator is Physically Small Yet has Exceptional Capacity Characteristic.
- Multi-Position Mounting.
