LB White 573946 Direct Spark Ignition Control Board

(No reviews yet) Write a Review

$173.02

6 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
LB-White-573946
Weight:
2.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
NorthStock In Massachusetts
Adding to cart… The item has been added

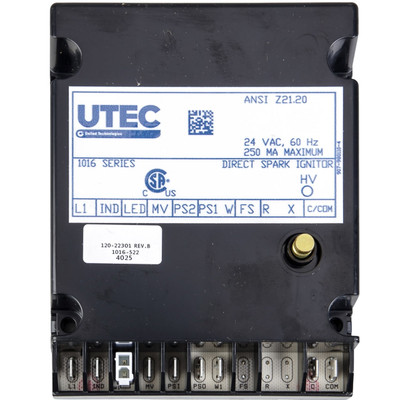

LB White 573946 Ignition Control Board Features:
- UTEC 1016 Series ignition module.
- 24 VAC, 60 Hz power input.
- 250 mA maximum current draw.
- ANSI Z21.20 compliant design.
- Integrated high-voltage spark output terminal.
- Clearly labeled multi-terminal connections.
- Controls ignition sequencing, gas valve operation, and flame sensing.

Fits These LB White Models:
- Premier TS040.
- Premier CS080.
- Premier TS080.
- Premier CS170.
- Premier TS170.
- Sentry ST60.
- Sentry ST80.
- Sentry ST100.
- Sentry ST125.
- Oval-U UT100.
- Oval AR080.

Additional Features:
The LB White 573946 UTEC 1016 Series Ignition Control Board is a direct spark ignition module engineered to manage safe and reliable burner ignition in Premier ductable heaters, as well as Oval Radiant Tube Heaters and Sentry models. Designed for 24 VAC, 60 Hz systems with a 250 mA maximum draw and compliant with ANSI Z21.20 standards, this control board serves as the central ignition authority within these heating units. Its most important physical feature is the clearly labeled multi-terminal interface, marked for connections such as L1, MV, PS1/PS2, W, FS, R, X, and C/COM, paired with a dedicated high-voltage (HV) output terminal, enabling precise, organized wiring and dependable integration into OEM harnesses. Once installed, the board sequences the ignition cycle by monitoring safety and pressure switch inputs, energizing the gas valve, and delivering a controlled high-voltage spark to initiate burner flame, ensuring consistent start-up performance and maintaining operational safety across compatible LB White heating systems.
