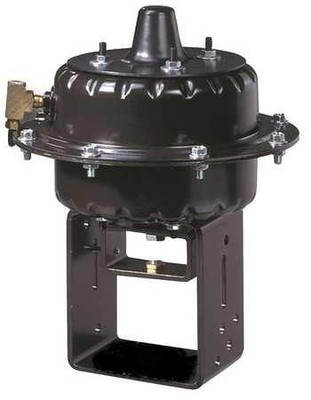

Johnson Controls MP823E001E Pneumatic Valve Actuator With Mounting Kit, Spring Return, 9-13 PSI

(No reviews yet) Write a Review

$852.31

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Johnson-Controls-MP823E001E
Weight:
15.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Johnson Controls MP823E001E Pneumatic Valve Actuator Features:
- With Mounting Kit.
- 25 Square Inch.
- Spring Return.

- 9-13 PSI Spring Range.
- 3/4 Inch Stroke.
- 1/4 Inch OD Barbed Fitting Air Connection.
- 25 PSI Max Control Pressure.
- Stem Up.

Additional Features:
The Johnson Controls MP823E001E is an MP8000 Series pneumatic, spring-return, normally open valve actuator with a 9–13 psig spring range, 3/4 in. stroke, and 25 psig maximum control pressure. Designed for use with compatible 2-1/2 in. and 3 in. globe valves, it provides reliable modulating control of hot water, chilled water, and steam in HVAC systems.
