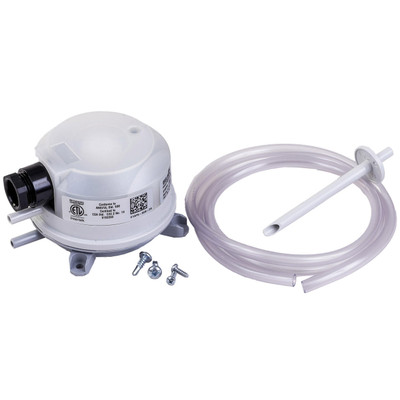

IO HVAC Controls iO HVAC Controls SPC Static Pressure Controller

iO HVAC Controls iO-SPC Static Pressure Controller

(No reviews yet) Write a Review
$146.31

9 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
iO-HVAC-Controls-SPC
Weight:
1.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
NorthStock In Massachusetts

Links To Product Literature:

iO HVAC Controls All Product Catalog
iO HVAC Controls SPC Brochure
iO HVAC Controls SPC Installer's Guide

Frequently Bought Together

Please choose options for all selected products

Description:

iO HVAC Controls iO-SPC Static Pressure Controller:
- Item 25719.
- Static Pressure Controller (Used For EB Dampers) .
- 5-year warranty.

Features and Benefits:
- Fully-calibrated setpoint dial foreasy set up.
- Easy to install.
- LED status indication.
- Sensing probe, plastic tubing and mounting fittings are furnished.
- Solid-state switching and timing circuit enhances operation and improves reliability.

HOW THE BYPASS SYSTEM WORKS: As individual zone dampers open and close, the system static pressure will rise and fall. In order to maintain proper airflow and static pressure through the HVAC system, a bypass system incorporating a floating-type motorized damper and a static pressure control should be used. The static pressure control is equipped with solid-state switching and timing circuit to enhance operation and improve reliability.

SPECIFICATIONS:

PRESSURE RANGE:
- 0.08” to 1.20” WC

PRESSURE CONNECTION:
- ¼” I.D. flex hose with probe

OPERATING TEMPERATURE:
- -40° F to 190° F

MAXIMUM SWITCHING CURRENT:
- 1 Amp @ 24VAC

MAXIMUM PRESSURE:
- 40” W.C.

TERMINAL DESIGINATIONS:
- 1 = 24 volt (Hot).
- 2 = 24 volt (Common).
- 3 = Actuator (Normally Open).
- 4 = Actuator (Common).
- 5 = Actuator (Normally Closed).

iO HVAC Controls SPC Series: The SPC-800 is a static pressure control with a solid-state switching and timing circuit that enhances operation and improves reliability. The unit has a fully-calibrated setpoint dial for easy set-up and adjustment. The SPC-800 is used with a bypass damper having a floating-type motorized actuator. As individual zone dampers open and close, the SPC-800 maintains the system static pressure by modulating the bypass damper.
