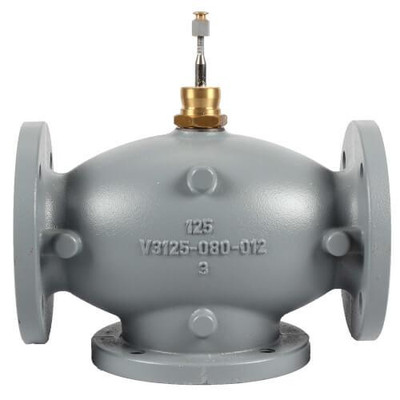

Honeywell VGF31LD30 Divert Flanged Globe Valve 3-Way Linear 3" Cv100
Honeywell
(No reviews yet)
Write a Review
Write a Review
Honeywell
Honeywell VGF31LD30 Divert Flanged Globe Valve 3-Way Linear 3" Cv100
$2,071.37
Usually Ships In 1-2 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- VGF31LD30
- Weight:
- 60.01 (Lbs.)
- Ships From:
- Illinois
- Ships By:
- Truck, Curbside, Back Of Truck
Description:
VGF Flanged Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration, in closed loop heating, ventilation and air conditioning (HVAC) systems. Features •ANSI Class 125 cast iron bodies with flanged end connections •Equal percentage and linear flow characteristics •Face-to-face flange dimensions per ANSI/ISA S75.03 standard Sizes from 2-1/2 to 6 in. •Stainless steel trim standard for long life span •Differential pressure of 175 psi, ANSI Class IV leakage •Steam inlet pressure up to 125 psig and 353 F maximum temperature •Self-adjusting packing •Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control •Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol™ Motors and MN/MS Series direct coupled actuators • Not suitable for combustible gassesRelated Units, Accessories, And OEM Replacement Parts
