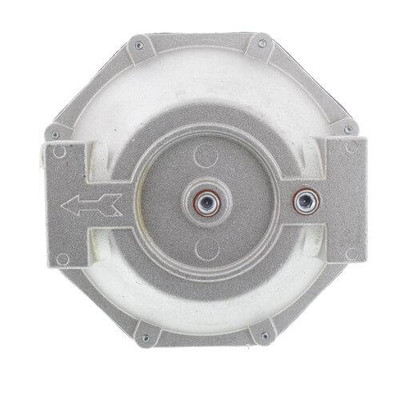

Honeywell V8943C1018 1 NPT Inch Pressure Regulating Valve, Aluminum Body, 1 Stage, LP Gas, 24V, 195-650 CFH

(No reviews yet) Write a Review

$547.25

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Honeywell-V8943C1018
Weight:
6.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Honeywell V8943C1018 Pressure Regulating Valve Features:
- 1 Inch.
- 1 Stage.
- 24 VAC.
- LP Gas.
- 195-650 CFH Capacity.
- 8.8-11.5 Inch Water Column High Fire Regulator Setpoints.
- 10 Inch Water Column Factory Setting.
- 3-25 Second Valve Opening Time.
- 2 Second Max Valve Closing Time.
- 1/8 Inch NPT Pilot Tapping.
- 1/2 PSI Pressure Rating.
- Upright Horizontal Mounting.
- Slow Opening.
- 5/16 Inch UNF Bleed Tapping.
- Aluminum Body.
- Two 30 Inch Lead Wires.

Additional Features:
The Honeywell V8943C1018 is a 24 VAC, single-stage, slow-opening, pressure-regulating gas valve with a 1 in. NPT connection for LP propane gas. It features a normally closed, solenoid-operated design with automatic shutoff on power loss and is designed for atmospheric boilers, unit heaters.
