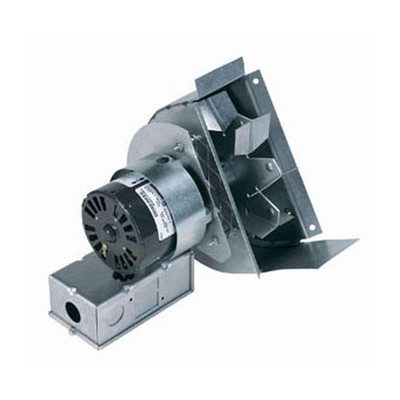

Field Controls DI-3 Draft Inducer Gas Or Oil 46090700
Field Controls
Usually Ships In 4-5 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- DI-3
- UPC:
- 090747099009
- Weight:
- 29.00 (Lbs.)
- Ships From:
- Massachusetts
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
Description:
Field Controls DI-3 Draft Inducer Gas Features:
- Draft Inducer.
- Type Draft Inducer.
- Used On Oil/Gas Fired Furnace, Water Heater, Boiler.
- Overall Dimension 12-9/16 Inch Length x 10-1/8 Inch Width x 9 Inch Depth.
- Pipe Size 8 to 12 Inch.
- Voltage Rating 115 Volt AC at 60 Hertz.
- Current Rating 3.9 Amp.
- Power Rating 186 Watt.
- Speed Rating 1725 RPM.
- Includes Thermal Protection.
- Applicable Standard ETL (Canada and US).
- UPC: 090747099009.
- Part Number: DI-3.
Additional Features
- Field Draft Inducers Solve the Drafting Problems Caused by Short Chimneys, Undersized Flue Pipes and Negative Building Pressures.
- Draft Inducers are Designed for Easy Installation in a Wide Variety of Applications, Including Oil or Gas-Fired Furnaces, Water Heaters and Boilers.
- For Venting Single or Multiple Appliances, Use a Control Kit.
- Di Packs are Available for 24 Volt and Mill Volt Applications and Include all Controls Necessary.
- When to Use a Draft Inducer Long Horizontal Vent Runs, Undersized Flue Pipes, Short Chimneys, Outside Exposed Chimney.
