Delta-Therm KIT-PC3 8 Inch x 6 Inch x 4 Inch Polycarbonate Lockable NEMA 4X Enclosure For 3-Way Splicing Ordinary Locations

(No reviews yet) Write a Review

$363.00

Usually Ships In 3-5 Business Days

Free ground shipping to the lower 48 states

Product ID:
Delta-Therm-KIT-PC3
Weight:
5.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Illinois - Direct From Delta-Therm
Adding to cart… The item has been added

Delta-Therm KIT-PC3 Polycarbonate Enclosure Features:
- NEMA 4X Lockable Enclosure of durable Polycarbonate.
- 8 Inch x 6 inch x 4 inch box to make connections for up to 3 cables.
- Generous 1 inch NPT Aluminum Standoff pipe mounted on a bracket to make feeding cable easier and more visible.
- 120, 208, 240, or 277 VAC operation.
- Optional Terminal Block for making up to 5 parallel connections (power, splice, 3-way splice, monitor light or combination of these. 24A max total.
- Optional Monitor Light (LED) available with or without Terminal Block.
- Optional Terminal Block and LED Monitor Light.

Additional Features
The KIT-PC3 provides extra room for performing the 3-way splicing of heat tracing cables. The 1 inch Aluminum Standoff accommodates up to 3 cables. The Standoff Bracket allows easy open access to the standoff for feeding multiple cables into the junction box.

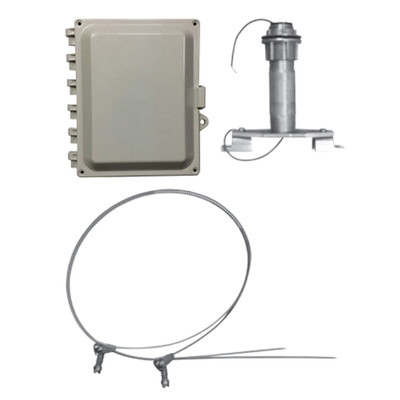

The KIT-PC3 includes the components needed to install the junction box on a pipe.
