Delta-Therm ELTC-14-RTD Digital Temperature Control, 32 Deg F To 482 Deg F, 20A At 90-260V

(No reviews yet) Write a Review

$921.00

Usually Ships In 3-5 Business Days

Free ground shipping to the lower 48 states

Product ID:
Delta-Therm-ELTC-14-RTD
Weight:
15.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Illinois - Direct From Delta-Therm
Adding to cart… The item has been added

Delta-Therm ELTC-14-RTD Digital Temperature Control Features:
- LED display operable down to -25 Deg C.
- Programmable 0 Deg C up to +390 Deg C.
- For switching 20 A resistive load with hybridrelay.
- Signaling contact (configurable to operate either as alarm or release contact, potential-free).
- Suitable for Pt 100 with 2 or 3 wires.
- For connection of up to 2 heating cables.
- Operating voltage: 90 - 260 VAC / 50/60 Hz.

Additional Features

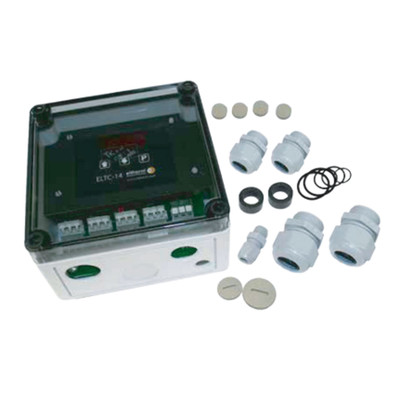

The ELTC-14 is an electronic temperature controller with digital display for wall mounting. The temperature is measured by a Pt 100 sensor, processed by the microcontroller and displayed. After having evaluated the actual and preset values, the appropriate output relays are switched,depending on the configuration.

Cable glands and terminals are provided for the power connection. The unit is supplied in a weather proof plastic enclosure, with a transparent cover.
