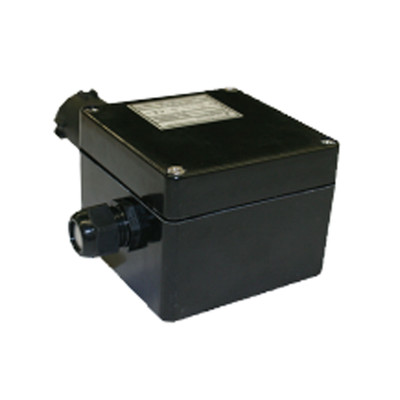

Delta-Therm ELAK-5-7 Old P/N PC1, Junction box, 5 In L x 4.75 In H x 3.5 In CEC, NEC Approved, Antistatic Polyamide Compound, Use With SR-NA Series
Write a Review
Delta-Therm
Delta-Therm ELAK-5-7 Old P/N PC1, Junction box, 5 In L x 4.75 In H x 3.5 In CEC, NEC Approved, Antistatic Polyamide Compound, Use With SR-NA Series
Usually Ships In 3-5 Business Days
Free ground shipping to the lower 48 states
- Product ID:
- Delta-Therm-ELAK-5-7
- Weight:
- 5.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- Illinois - Direct From Delta-Therm
Delta-Therm ELAK-5-7 Junction Box Features:
- Housing: Antistatic polyamide compound.
- IP rating: IP 65 (NEMA 4 equivalent).
- Operating/ control voltage: 120 / 208-277 V AC ±10 percentage, 50/60 Hz.
- Operating temperature: - 40 deg F to + 122 deg F (T6, T85 deg C).
- Nominal current: max. 36 A.
- Terminals: AWG 20 - 8 (0.5 - 10 mm).
Additional Features
Junction Box approved for use in Ordinary and Hazardous Locations. The Eltherm ELAK-5.7 Junction Box is designed and CSA approved for use in commercial and industrial applications for termination of Eltherm ELSR-NA and HA series trace heaters. The standard junction box assembly comes equipped with integrated terminals for terminating two (2) heating circuits and is designed for stand-alone, wall or panel mount installations. ELAK 5.7 comes with two (2) pre-drilled 3/4 inch F-NPT openings for termination of Eltherm's Power Connection Kits and One (1) M25 entry for power (fitting included). The ELAK-5.7 Junction Box is constructed of highly durable Polyamide material and offers high chemical resistance, excellent electrical characteristics and superior ambient temperature ratings.
