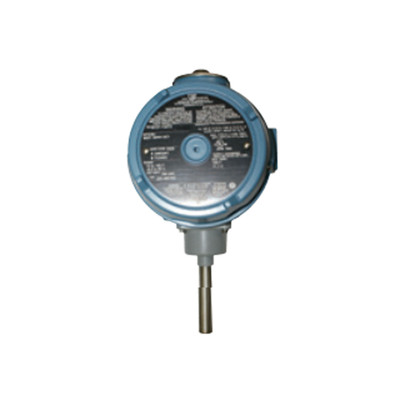

Delta-Therm B121-13272 Old p/n OTS-AH, NEMA 4X 7, 9, IP66 Epoxy Painted Die Cast Alum Ambient Sensing TStat Temp Control, 120-480V, SPDT c/w SS stem

(No reviews yet) Write a Review

$1,269.75

Usually Ships In 3-5 Business Days

Free ground shipping to the lower 48 states

Product ID:
Delta-Therm-B121-13272
Weight:
25.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Illinois - Direct From Delta-Therm
Adding to cart… The item has been added

Delta-Therm B121-13272 Ambient Sensing Thermostat Temperature Features:
- Old p/n OTS-AH.
- Explosion proof.
- NEMA 4X 7, 9 and IP66.
- Epoxy painted.
- Die cast aluminum.
- Connection: 1/2 inch NPT (female).
- Switch: Single pole, double Throw (SPDT).
- Adj. Set Point Range: 15 deg F to 140 deg F (-9 deg C to 60 deg C).
- Max. Temperature: 160 deg F (71 deg C).
- Ambient Range of enclosure: -40 deg F to 160 deg F (-40 deg C to 71 deg C).
- Rating: 22A up to 480VAC.
- Sensor: Stainless Steel Stem.

Additional Features
The B121 series is an ambient sensing temperature control, suitable for indoor and outdoor use in classified locations. Made in a lightweight Epoxy coated die cast aluminium NEMA 4X, 7, 9 and IP66 enclosures.
