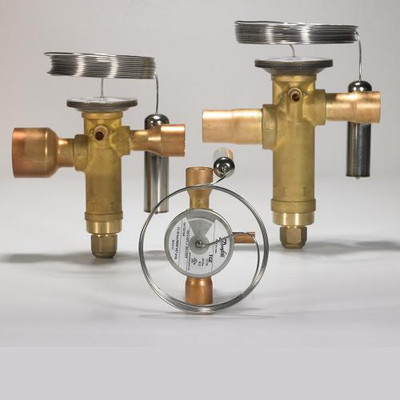

Danfoss 067N5169 Thermal Expansion Valve, 1 1/8 Inch ODF x 1 3/8 Inch ODF, Straight Body, 25 Ton, R134a, 60 Inch Capillary Tube, TGEN 40

(No reviews yet) Write a Review

$409.95

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Danfoss-067N5169
Weight:
2.48 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Danfoss 067N5169 Thermal Expansion Valve Features:
- 1 1/8 Inch ODF x 1 1/8 Inch ODF.
- Straight Body.
- 60 Inch Capillary Tube.
- R134a.
- 25 Ton Capacity.
- MOP 667 PSI.
- Externally Equalized.
- With number 40 orifice and bulb strap.
- Type TGEN 40.

Additional Features:
The Danfoss 067N5169 is a thermostatic expansion valve (TGE series) used in HVAC and refrigeration systems to regulate refrigerant flow into the evaporator for stable superheat control and efficient cooling. It is designed for R134a and R513A refrigerants, features a straightway brass body, externally equalized, balanced-port construction, and bi-directional flow, with 1 1/8 inch ODF inlet, 1 3/8 inch ODF outlet, and 1/4 inch equalizer connections.
