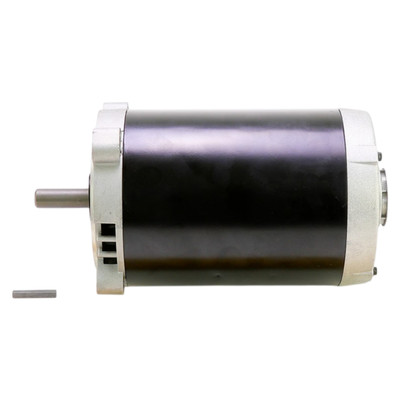

Century Motors H254ES General Purpose Motor, 230/460V, 1/2 HP, 3450 RPM, Three Phase, 1.8/0.9 Amp, 56C Frame

(No reviews yet) Write a Review

$356.98

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-H254ES
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Century Motors H254ES General Purpose Motor Features:
- 230/460V.
- 1/2 HP.
- 3450 RPM.
- Three Phase.
- 1.8/0.9 Amp.
- 56C Frame.
- 1.6 Service Factor.
- Continuous Duty.
- ODP Enclosure.
- CW/CCW Rotation.
- No Protector.
- 5/8 Inch Keyed Shaft.
- Ball Bearing.

Additional Features:

The Century Motors H254ES is a compact, general‑purpose 3‑phase AC motor delivering 1/2 HP with dual voltage 230/460 V, running at approximately 3450 RPM on a 56C frame with an open drip‑proof ODP enclosure and ball bearings; it features reversible rotation, continuous duty, 1.8 A/0.9 A current draw, Class B insulation and a 1.6 service factor, making it suitable for driving fans, blowers.
