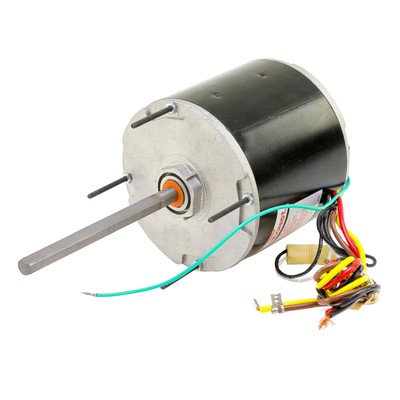

Century Motors F1036 Condenser Fan Motor, 1/3HP, 208-230V, 1075 RPM

(No reviews yet) Write a Review

$374.74

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-F1036
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Century Motors F1036 Condenser Fan Motor Features:
- 1/3Hp.
- 208-230V.
- 1075Rpm.
- 2 Speed.
- 1.7-2.6 Amps.
- Ball Bearings.
- 5 5/8" Diameter.
- Open Lead End.
- 1/2" Flatted Shaft.
- All Angle Mount.
- Reversible.
- Auto Protector.

Additional Features:
The Century Motors F1036 is a permanent split capacitor (PSC) condenser fan motor rated at 1/3 HP, operating at 1075 RPM with 2 speeds, on 208-230V single-phase 60 Hz power drawing 1.7 amps. It features a 48Y frame, ball bearings (or sleeve in select listings), semi-enclosed (air-over) enclosure suitable for outdoor use, stud or belly band mounting, reversible rotation, and is designed for continuous duty.
