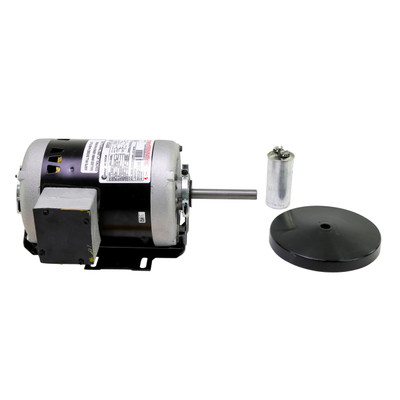

Century Motors C663 Condenser Fan Motor, 3/4HP, 208-230/460V, 1100 RPM, Single Phase

(No reviews yet) Write a Review

$851.86

8 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-C663
Weight:
22.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors C663 Condenser Fan Motor Features:
- 3/4Hp.
- 208-230/460V.
- 1100Rpm.
- Single Phase.
- 4.8-4.2/2.1 Amps.
- 56Z Frame.
- 5/8" Flat Shaft.
- ODP Enclosure.
- CCW Rotation.
- Resilient Base.
- Auto Protector.
- Base Mounted.
- Reversible.
- 1.0 Service Factor.
- Permanent split capacitor.

Additional Features:
The Century Motors C663 is a permanent split capacitor (PSC) condenser fan motor designed for HVAC and refrigeration systems, particularly as an OEM replacement for Liebert units. It provides 3/4 HP, operates at 1100 RPM, runs on 208-230/460V single-phase 60 Hz power, and features a 56Z frame (6-1/2 inch diameter), ball bearings, resilient/base mounting, reversible rotation (CW/CCW or CCW shaft end), automatic thermal protection, air-over enclosure, included capacitor, and a 5/8" diameter flat shaft.
