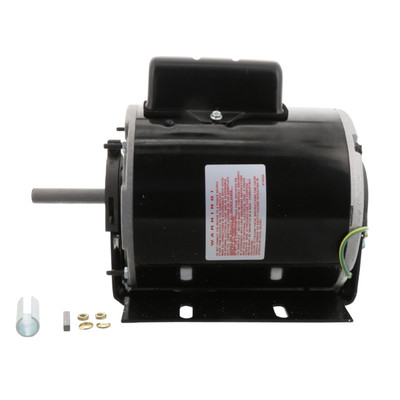

Century Motors C059A Direct Drive Fan Motor, 1/4HP, 115V, 1100 RPM, Single Phase

(No reviews yet) Write a Review

$385.04

1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-C059A
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors C059A Direct Drive Fan Motor Features:
- 1/4Hp.
- 115V.
- 1100Rpm.
- Single Phase.
- 2 Speed.
- 3.4 Amps.
- 48Z Nema Frame Size.
- Totally Enclosed Air Over.
- Ball Bearing.
- 1/2" x 3" Shaft.
- Reversible Rotation.

Additional Features:
The Century Motors C059A is a permanent split capacitor (PSC) direct drive fan motor rated at 1/4 HP, operating at 1100 RPM (single speed), on 115V single-phase 60 Hz power with 3.4 amps draw. It features a 48Z frame, TEAO (totally enclosed air over) enclosure for air-over cooling, ball bearings, automatic thermal overload protection, resilient base mounting, reversible rotation, and a 1/2-inch diameter shaft.
