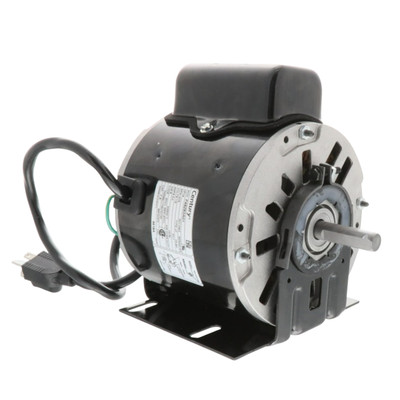

Century Motors 9618A Permanent Split Capacitor Motor, 1/4HP, 115V, 1075 RPM, Single Phase

(No reviews yet) Write a Review

$427.34

7 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-9618A
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors 9618A Permanent Split Capacitor Motor Features:
- 1/4Hp.
- 115V.
- 1075Rpm.
- Single Phase.
- 1 Speed.
- 3.0 Amps.
- 48Y Nema Frame Size.
- Semi Enclosed.
- Ball Bearing.
- 1/2" x 2 1/8" Shaft.
- CW Lead End Rotation.

Additional Features:
The Century 9618A is a 1/4 HP, single-speed, Permanent Split Capacitor (PSC) electric motor designed specifically as an OEM direct replacement for HVAC systems, most notably American Air Filter units. Operating at 115V and 1075 RPM, this 48-frame motor features a 5.6-inch diameter, a 1/2" x 2.14" shaft with a flat, and is thermally protected with an automatic reset.
