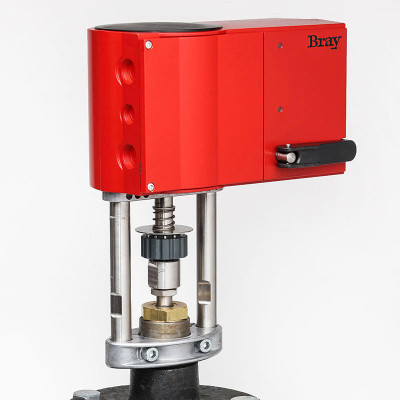

Bray Commercial Bray GASEX24-450 Actuator, Spring Return, Normally Extended, 24V, 450 In-Lbs

Bray GASEX24-450 Actuator, Spring Return, Normally Extended, 24V, 450 In-Lbs

(No reviews yet) Write a Review
$934.77

Usually Ships In 7-9 Business Days

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
Bray-GASEX24-450
Weight:
30.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Texas - Direct From Bray

Links To Product Literature:

Bray GASEX24-450 Catalog
Bray GASEX24-450 Submittal
Bray GASEX24-450 Installer's Guide

choose options:

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description:

Bray GASEX24-450 Actuator Features:
- 450 In-Lbs.
- 24 VAC / VDC.
- Spring return.
- Shaft normally extended.
- On/Off, floating and modulating.
- IP66 enclosure.
- Manual override with external crank.

The Bray GA(S) series is a direct mount line of linear motor actuators to be used primarily on PIC and globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties.

These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return (GA) and spring return (GAS) versions.
The GA(S) series is bi-directional, selectable via screw terminals.
  • Actuator Power:24V
  • Return Position:Spring Return
