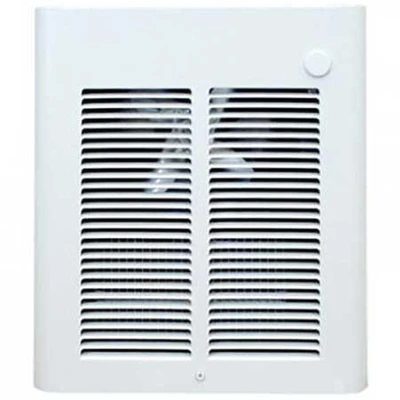

Berko SRA2024DSF Electric Wall Heater, 2/1/1.5/0.75KW, 240/208V 1PH 9/5/8/4A
Berko
(No reviews yet)
Write a Review
Write a Review
Berko
Berko SRA2024DSF Electric Wall Heater, 2/1/1.5/0.75KW, 240/208V 1PH 9/5/8/4A
$284.02
1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)
Free ground shipping to the lower 48 states
- Product ID:
- Berko-SRA2024DSF
- UPC:
- 685360163956
- Weight:
- 11.00 (Lbs.)
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
- Ships From:
- NorthStock In Massachusetts
Description:
Berko SRA2024DSF Electric Wall Heater, 2/1/1.5/0.75KW, 240/208V 1PH 9/5/8/4A:
Built with both durability and aesthetics in mind, the SRA series heaters offer a lot, in a small package. Whether a waiting room, small stairwell, office, or basement, this unit offers extra warmth, robust construction, and aesthetic appeal to meet the needs of your building’s occupants.
Berko SRA Series Features:
- Northern White
- Contemporary, commercial-grade steel grille, designed to provide comfort through optimized airflow.
- Manual reset thermal overheat protector disconnects power in the event of accidental blockage.
- Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down.
- Built-in tamper resistant thermostat (adjusted by placing screwdriver through front grille), 40-90 degree F warmer-cooler setpoint range. Allows for easy adjustment of room temperature to maintain desired comfort level.
- 65 CFM airflow.
- All units have a permanently lubricated enclosed fan motor, which creates long life and low maintenance, and gently distributes warmth throughout the area.
- Tamper-proof plug for thermostat hole.
- Built-in tamper resistant thermostat (adjusted by placing screwdriver through front grille), 40-90 degree F warmer-cooler setpoint range. Allows for easy adjustment of room temperature to maintain desired comfort level.
- 65 CFM airflow.
- All units have a permanently lubricated enclosed fan motor, which creates long life and low maintenance, and gently distributes warmth throughout the area.
- Tamper-proof plug for thermostat hole.
- Built-in power on/off switch for added safety during maintenance.
IDEAL SPACES
- Vestibules
- Entrance Ways
- Lobbies
- Hallways
- Stairwells
- Restaurants
- Conference Rooms
- Offices
- Basements
- Family Rooms
- Bedrooms
ARCHITECT’S AND ENGINEER’S SPECIFICATIONS*
The heating equipment shall include an electric automatic fan forced air heater suitable for small area heating, as manufactured by Berko®, a Marley Engineered Products® Brand, Bennettsville, SC. The heater shall be designed for wall mounting, recess or surface. Heaters shall be cETLus listed.
BACK BOX: The back box shall be designed as a recessed rough-in box in either masonry or frame installations and is also used when surface mounting frames are used in surface mounting installations. The back box shall be heavy gauge galvanized steel and shall contain knockouts through which power leads enter.
INNER FRAME ASSEMBLY: The heater assembly, which fits into the back box, shall consist of a heavy gauge steel fan panel to which all of the operational parts of the heater are mounted. The inner frame assembly shall be completely prewired.
HEATING ELEMENT: The heating element shall be of the non-glowing design consisting of an 80/20 nickel-chromium resistance wire enclosed in a steel sheath to which plate fins are copper brazed. The element shall cover the entire air discharge area to ensure uniform heating of all discharged air. It shall be warrantied for 5 years.
ON/OFF SWITCH: A double-pole, single throw on/off switch shall be mounted on the back box for positive disconnect of power supply. It will be completely concealed behind the front cover.
MOTOR AND CONTROLS: The fan motor shall be impedance protected, permanently lubricated. Fan control shall be of the bi-metallic, snap-action type and shall activate fan after heating element reaches operating temperature, and continue to operate the fan after the thermostat is satisfied and until all heated air has been discharged. The thermostat shall be single-pole type on all models. Thermal cutout shall be selfhold (manual-reset) type designed to shut off heat in the event of overheating. The fan shall be four-bladed aluminum. A backup (End of Life) thermal fuse shall be provided for additional safety.
