Barber Colman MK-4641 Pneumatic Valve Actuator With 1/8 Inch NPT Air Connection And 1/2 Inch Nominal Stroke

(No reviews yet) Write a Review

$286.68

3 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Barber-Colman-MK-4641
Weight:
2.52 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Barber Colman MK-4641 Pneumatic Valve Actuator Features:
- with 1/8" NPT Air Connection and 1/2" Nominal Stroke
- 3-13 Psi.
- Proportional Control.
- Spring Return.
- Linear Movement.
- Nema 1 Enclosure.

Additional Features:

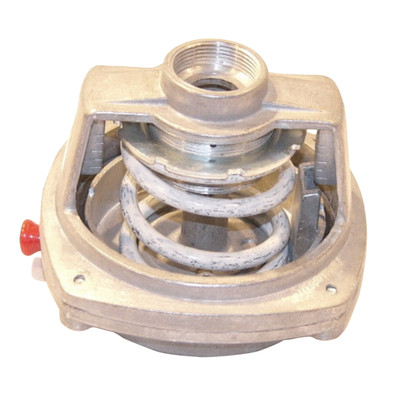

The Barber-Colman MK-4641 is a pneumatic valve actuator with an 11 square inch (71 cm²) effective diaphragm area, featuring a rugged die-cast aluminum housing, replaceable beaded molded neoprene diaphragm, and a built-in spring for retracting the output shaft on air pressure loss (spring return).
