- This item replaces the Amana 2246003.
- 2-Stage Heat/Single-Stage Cool Heat Pump or Single-Stage Heat/Single-Stage Cool Electric Heat.
- Can be used with Cooling/Conventional PTAC units, with or without electric heat and Heat Pump PTAC units, with or without electric heat.

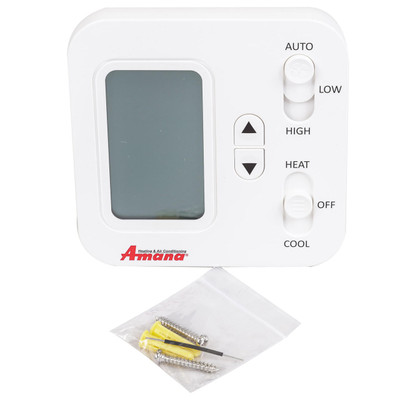

- Large LCD Display screen and simple temperature up and down soft touch pads and Heat/Off/Cool and Fan On/Auto slide switches.
- Large, Backlit 3" Display.
- 2 Speed Fan - Slide Switch settings include Auto, Low and High.
- Temperature Limits.
- Field Adjustable Calibration.
- PTAC/PTHP Operation - 2 Stage Heat / 1 Stage Cool Heat Pump; 1 Stage Heat / 1 Stage Cool Electric Heat.
- Temperature Control: 45°F - 90°F.
- Accuracy: ±1°F.
- Patented Thermal Intrusion Barrier.
- Manual Changeover.
- Adjustable Maximum Heat / Minimum Cool Set Points.
- Hardwired.
Compatibility Notes:
- A PWHK01C wiring harness is required when upgrading obsolete 42" wide Amana DigiSmart PTAC units; G series and older.
- A PBTCK01 wiring harness is required when upgrading Amana 26" wide PB series through-the-wall units, CC series.
Electrical Rating:
- 24 VAC (19-30 VAC).
- 1.5 amp maximum per terminal; 3 amp maximum total load.
- Easy access terminal block.
System Configurations/Dimensions:
- 2-stage heat, 1-stage cool heat pump.
- 4.53" x 4.53".
