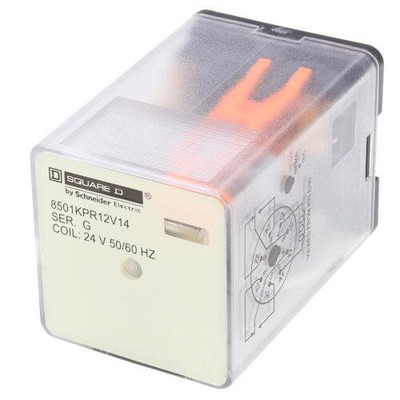

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Features:
Range of product: 8501K
Product or component type: Relay
Contacts material: Silver alloy (AgNi)
Switch function: DPDT
[Uc] control circuit voltage: 24 V AC
Rated power in hp: 0.33 hp 120 V, 1 hp 277 V
Maximum switching voltage: 300 V AC, 30 V DC
Ambient air temperature for operation: -40...131 °F
Shape of pin: Tubular
Product certifications: RoHS, CSA, UL recognized, CE
Operating time: 20 ms pick-up, 20 ms drop-out
Relay type: General purpose
