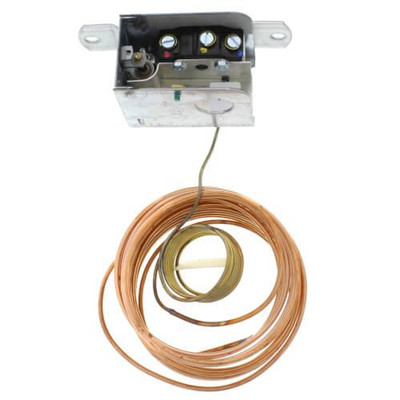

The Electric Low Temperature Detection Thermostat is a remote bulb instrument with a
Single-Pole Double-Throw (SPDT) switch which closes and opens a circuit in both
directions.
Applications:
The electric low temperature detection thermostats are especially suited for sensing low
temperature conditions to avoid freeze-up of hydronic heating coils, cooling coils, liquid
heating pipes and similar applications. Typically, the switch opens an electrical circuit to
stop the supply fan motor when the temperature at the sensing element falls below the
setting of the instrument.
Features:
Compact and sturdy
Adjustable range with fixed differential
Unaffected by ambient temperature at case
Manual or automatic reset available
The set point adjustment screw is accessible at the bottom of the control or at the
top with the cover removed
Mounting bracket standard
